"EL CAPITAN" STUDDED FORGED 383 STROKER BLOWER ENGINE STAGE 1

$9,550.00
In stock
Product Details

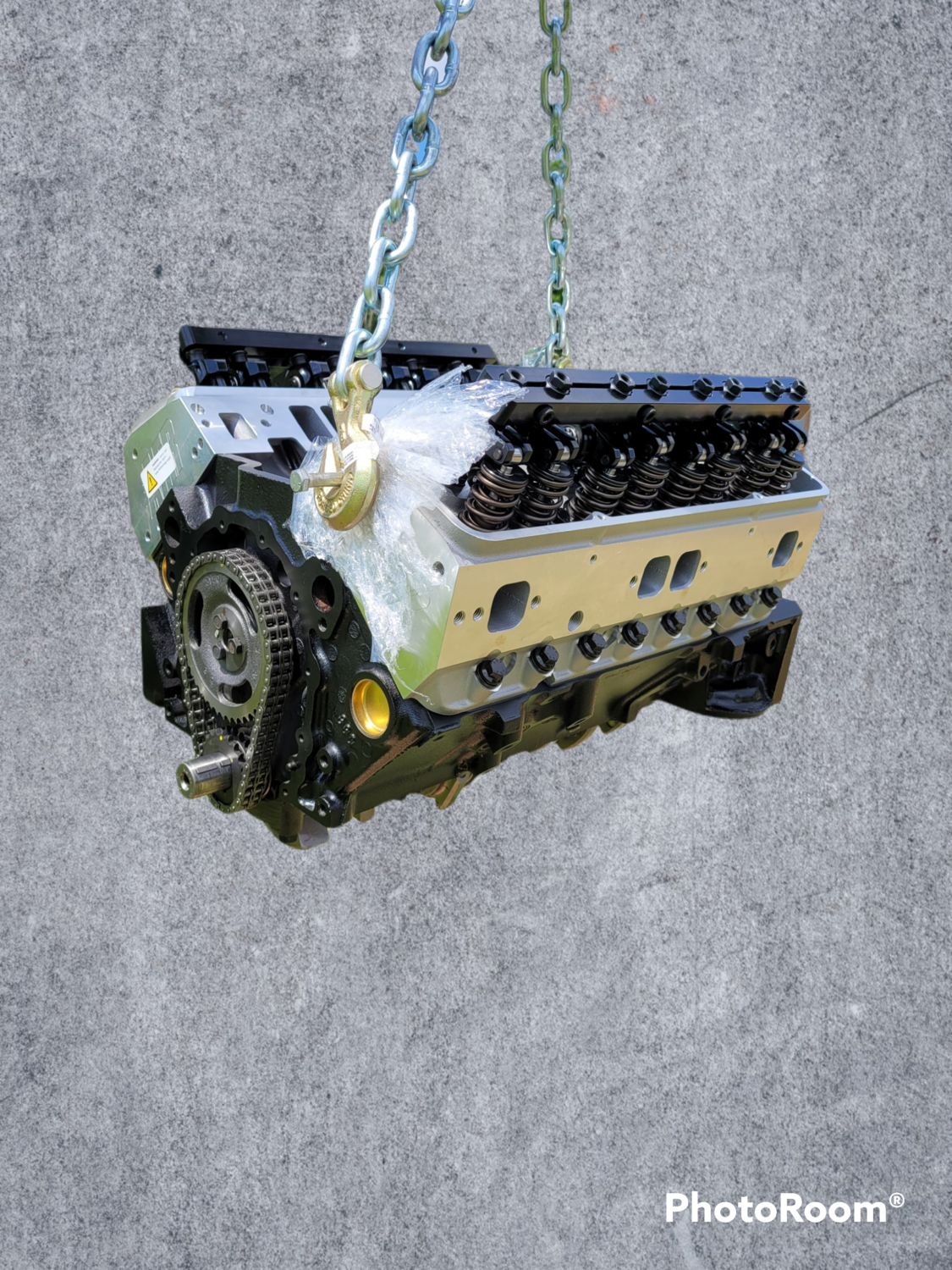

FORGED 383 SUPERCHARGER READY LONG BLOCK

BUILT TO ORDER!

GM 1 PIECE 5.7 350 CI ROLLER BLOCK

CUT AND HONED .040 OVERBORE

CLEVITE CAM AND MAIN BEARINGS

BRASS EXPANSION PLUG KIT

+/-.010 DECK

385 C.I.

DIGITALLY BALANCED ROTATING ASSEMBLY

EAGLE STEEL STROKER CRANK

EAGLE H-BEAM

MAHLE FORGED POWERPAK PLUS +26CC DISH 8.54:1 COMPRESSION

Bore (in.): 4.040 in.

Stroke: 3.750 in

Rod Length: 5.700 in.

Dish, with two valve reliefs

Forged aluminum

Compression Height (in.): 1.425 in.

Piston Head Volume (cc): +26.00cc

MOLY COMPRESSION RINGS

PREMIUM OIL CONTROL RINGS

AFR ENFORCER 195 64CC CYLINDER HEADS

1.290 DOUBLE PAC SPRINGS

CHROMOLY RETAINERS

MACHINED BEAD 7 DEGREE LOCKS

3 ANGLE VALVE SEATS

HARDENED MACHINED SPRING SEAT

2.02/1.6 VALVE

195CC INTAKE

76CC EXHAUST

ARP 3/8 STUDS

AFR ADJUSTABLE GUIDE PLATES

1.6 ALUMINUM ROCKERS

STUD GIRDLES

Trunnion option available

8mm 21 4N stainless steel valves

VITON VALVE SEALS

HOWARDS ROLLER CAMSHAFT

Camshaft Manufacturers Description:

Choppy idle, strong low and midrange performance. 2,500+ stall.

Basic Operating RPM Range: 2,000-5,500

Duration at 050 inch Lift: 229 int./229 exh

Advertised Duration: 282 int./282 exh.

Valve Lift 1.6 Rocker Arm Ratio: 0.514 int./0.514 exh.

Lobe Separation (degrees): 108


CAPABLE OF 600-800+ HP WITH SUPERCHARGER
